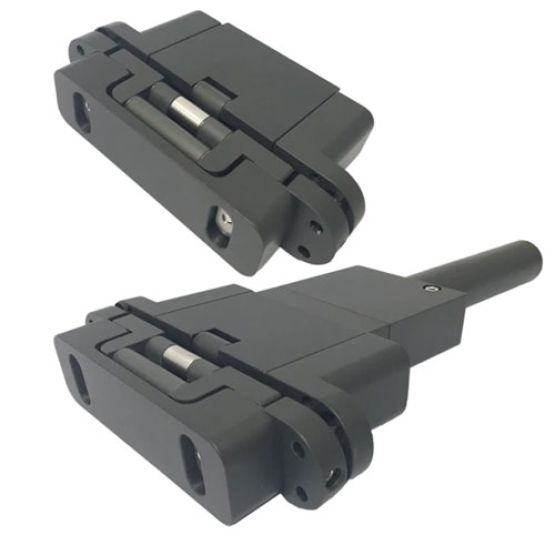

SURECLOSE® CONCEALFIT FOR DOORS
SureClose® CONCEALFIT Door Closer & Hinge Sets are high-quality, hydraulic units aimed at providing a concealed finish and a highly adjustable self-closing solution. They are ideal for interior and exterior wood, hollow-metal and aluminum doors and frames. When closed, the SureClose® CONCEALFIT system cannot be seen or tampered with. They also provide burglary and vandalism resistance. Superb engineering and patented design allow total concealment of the hinge-closer unit in a remarkably small housing.The Hinge-Closer is easily adjustable in three dimensions (horizontal, vertical and in/out) for fine positioning and speedy gate alignment. It features fine controls for primary closing speed, latching speed and backcheck, plus UL10C fire-rating and has been tested to ADA and ANSI/BHMI Standards. SureClose® CONCEALFIT is designed for premium flush doors and “invisible” doors. With NO hold-open feature, it opens to, and self-closes from, 125˚. Steel receivers for hollow-core doors, and routing templates for wood gates, are sold separately. All SureClose® CONCEALFIT housings are made of high-grade aluminum.
Hydraulic Door Closer/Hinge System
• Hydraulically operated hinge and gate closer set
• Concealed mechanisms offer burglar resistance
• Secure, safe and quiet operation
• Door gap as low as 5/64”
• Easily installed internally within the door cavity
• Easily accessed, adjustable closing-speed valves
• 6 different adjustments to ensure precise installation
• The innovative choice of Architects and Designers
• Tested to ADA Standards
| Brand | SureClose® |
| Product Code | 77108523 Kit, 78108513 Hinge Only |
| Gate Application | Interior Door, Front Door, Fire Rated Door, ForceEntry Resistant Door, Hotel Door, Theatre Door, Residential Garage Door |
| Gate Type | Self-Closing |
| Gate Material | Wood Door, Hollow Core Door (Metal, Fibreglass FBG) |
| Self-Closing Gate Weight | Up to 220lb (100kg) |
| Approx Gate Size | 4ft W x 6ft H (1.2m x 1.8m) |
| Gate Frame/Post Shape | Square-to-Square |
| Min Post Size | 1 ¾+ (45mm) |
| Ideal Gate Gap | Adjustable from 0.08” (2mm) – 0.24” (6mm |
| Fixing Method | Screw-On |
| Colour/Finish | Black Anodised |
Case Lots $159.00Ea.
